Introducing Midland Radio's New Repeater- Extending Range

Midland Radio is excited to introduce its MXR10 Repeater and MXR10VP Repeater Bundle.

ABOUT MIDLAND RADIO'S NEW REPEATER

Stretch your Midland MicroMobile GMRS two-way radios even further with this repeater.

Repeaters act as a combination of a radio receiver and radio transmitter. They receive a signal and transmit it so that two-way radios can cover longer distances. Thus, Midland Radio's repeater is the perfect solution for farms and sprawling properties like off-road parks.

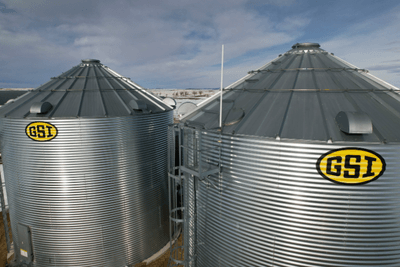

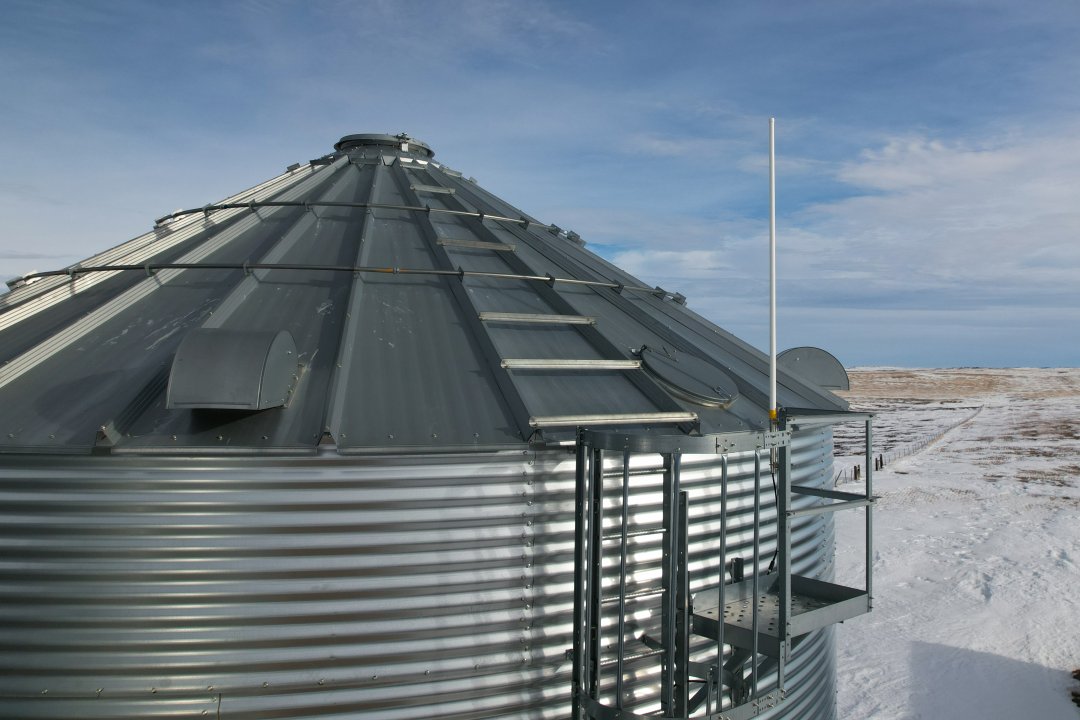

The higher you mount the antenna, the better coverage you can get.

Maximize your GMRS radio range with Midland's MXR10 or MXR10VP.

KEY FEATURES OF MXR10

• 10 Watt High Power/5 Watt Low Power (less duplexer insertion loss)
• 16 Channel Capability
• Channels pre-configured for eight wide band and eight narrow band GMRS repeater pairs
• Independent receive and transmit privacy tone selection through PC software
• Wide and Narrow Band selection through PC software
• High/Low Transmit Power selection through PC software
• Noise Squelch level adjustment through PC software
• Repeater Delay (Hang) Time adjustment through PC software
• Keypad Lock function
• 1-Year Warranty
• Compatible with Midland Repeater Capable GMRS mobiles and portables
• GMRS license required
• Antenna and Cabling not included

IN THE MRX10 BOX

•  MRX10 Repeater
• AC Adapter
• Programming Cable
• Owner's Manual
• Quick Start Guide

THE MXR10VP

The MXR10VP packs a punch with radio range. This bundle levels up the repeater with the accessories you need to take that range even further.

IN THE MXR10VP BOX

• MXR10 Repeater
• AC Adapter
• Programming Cable
• Owner's Manual
• Quick Start Guide
• 7 ft. 10 dB Antenna
• 50 ft. Low Loss Coaxial Cable
• Antenna to Mast Mounting Clamps

QUICK-START GUIDE

1. Attach the power supply to the power port on the MXR10
2. Plug the power supply into an outlet and the repeater will power on automatically
3. Connect the antenna cable to SO239 Antenna Jack on the MXR10
4. Connect antenna cable to the antenna and mount as high as safely possible
5. Short press the up or down arrow to increase or decrease the volume
6. Long press the up or down arrow to scroll through channels
7. Short press both arrows at the same time to view the current channel CTCSS/DCS settings
8. Long press both arrows at the same time to toggle the keypad lock on/off
9. To power down, simply disconnect the power supply from the MXR10. Repeater

WHO USES THE REPEATER AND REPEATER BUNDLE

• Farmers
• Ranchers
• Off-Roaders
• Hunters
• Emergency Managers
