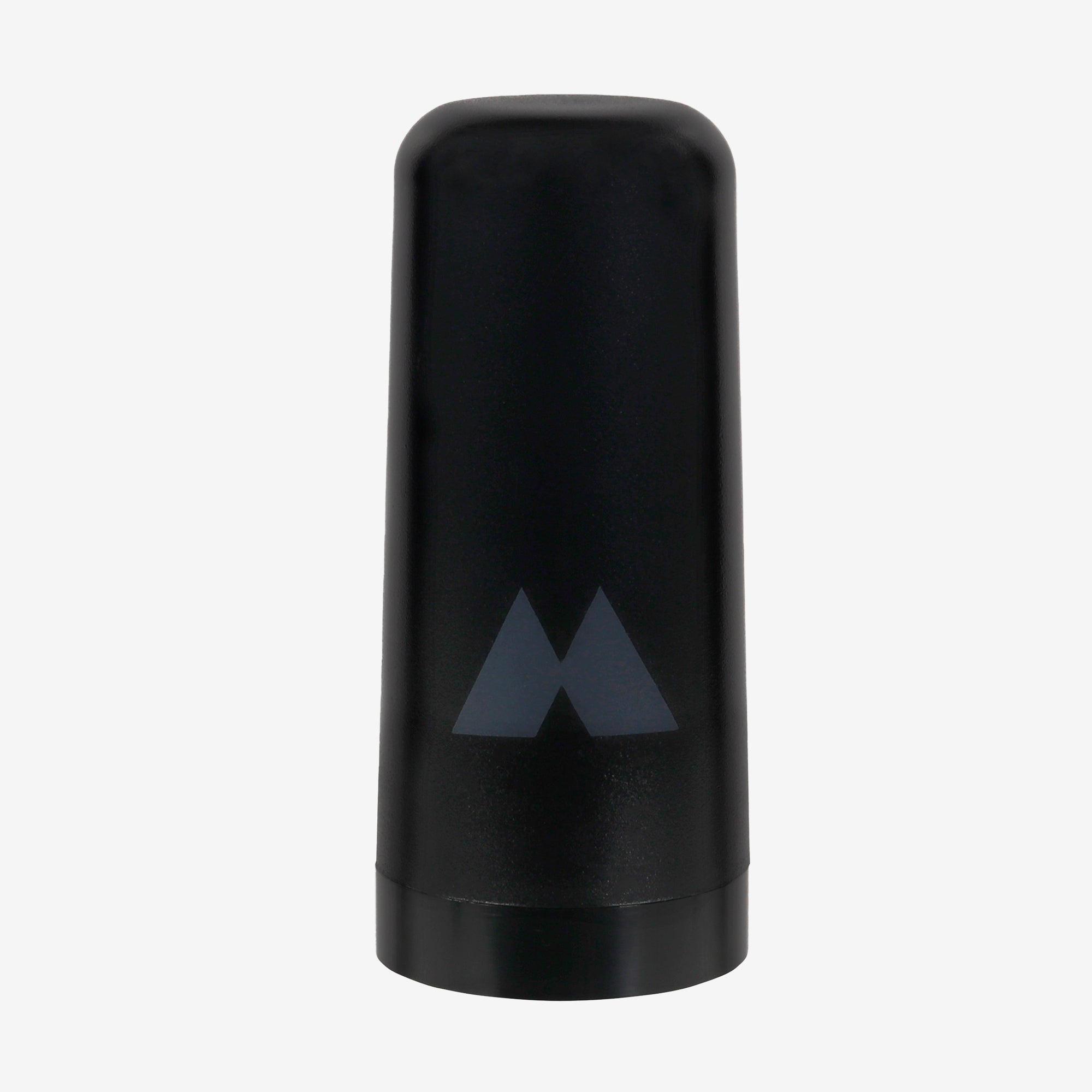

MicroMobile® Ghost 3dB Gain NMO Antenna - MXTA25
Midland’s MXTA25 Ghost Antenna boosts GMRS two-way radio range in areas with heavy obstructions and a low-profile design for clear communication. *Mount and cable not included
For product support visit support.midlandusa.com
- Specific Frequency: 462 MHz
- Gain: 3dB
- 5/8 wave antenna
- 3.5 inches in length
- 1.5 inch base diameter
- Mobile Antenna Mounting Type: NMO
- Maximum Power: 120 W
- Color: Black
- Antenna mount NOT included
- Compatible with MXT105, MXT115, MXT275, MXT400, MXT500, MXT575
- 3dB Gain Antenna
-
What size mounting hole does this require?
The mounting hole is 2/3 inches.
-
Does this antenna need to have a ground plane?
All the current Midland anntenna offerings require a ground plane to perform as expected. In general, the minimum size for a ground plane is considered a 1/2 wavelength across or about 12" for GMRS frequencies. Steel or aluminum can serve as a ground plane and it does not need to be a continuous plane.
-
Can I use this antenna with a HAM or CB radio?
No, the Ghost antenna is a GMRS antenna and as such will only work with GMRS radios.
